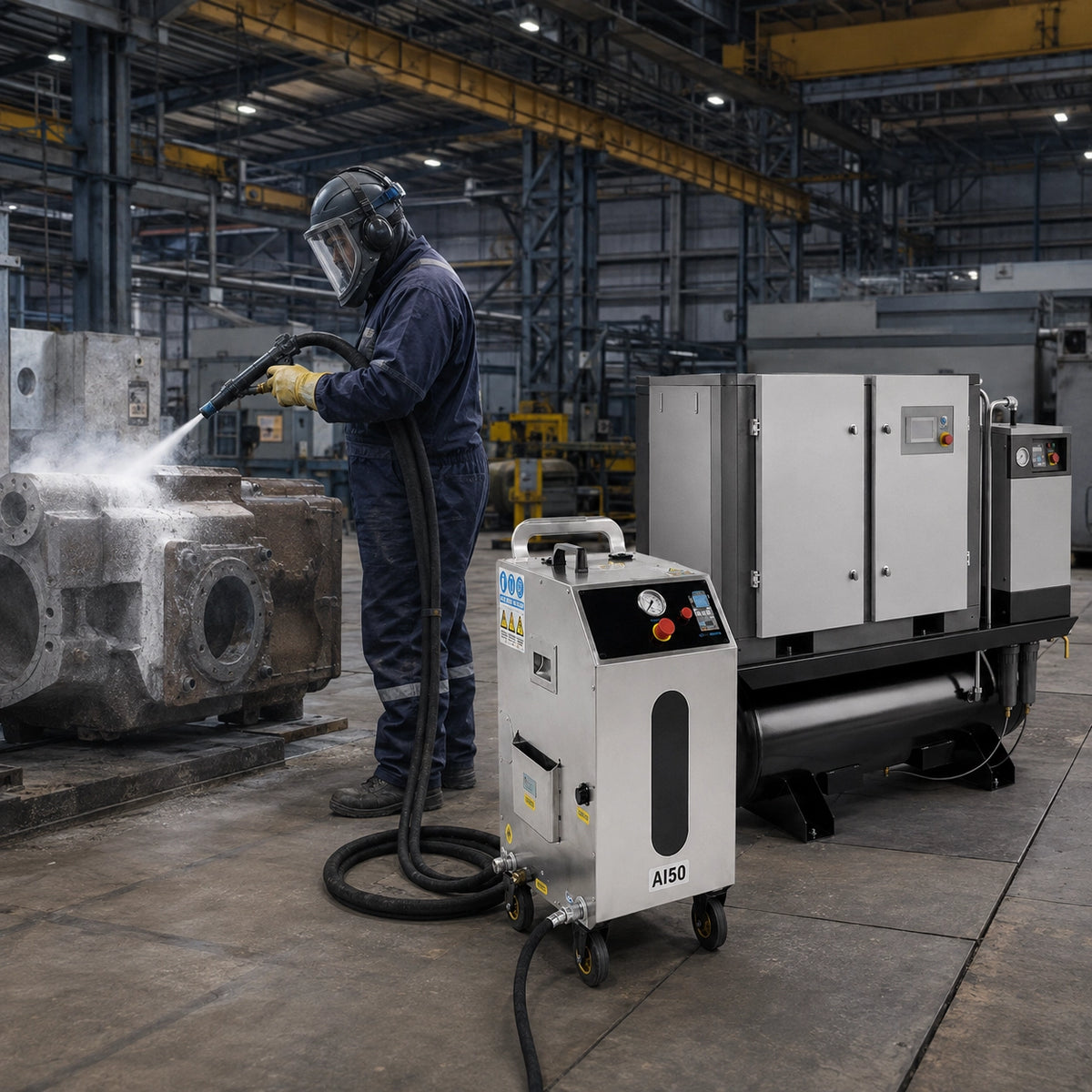

Complete Industrial Dry Ice Blasting System for AI50
This AIOLITH package combines the AI50 Industrial Dry Ice Blaster with a custom 30 kW / 40 HP 4-in-1 rotary screw air compressor system.
In the standard 8 bar reference configuration, the compressor provides 5.0 m³/min F.A.D. (approximately 177 CFM). This meets the AI50 minimum airflow requirement of 175 CFM, but it is below the 200–400 CFM recommended range for stronger and more stable continuous industrial blasting. If your application requires sustained high output, confirm a higher-airflow compressor configuration before ordering.
The compressor package integrates the rotary screw compressor, air tank, refrigerated air dryer, and filtration system into one compressed-air solution.
Why This System
- Meets AI50 Minimum Airflow: approximately 177 CFM at the standard 8 bar reference point, compared with the AI50 175 CFM minimum.
- Standard 8-Bar Configuration: 8 bar / 116 PSI is within the AI50 stable operating pressure range.
- Air Treatment: integrated refrigerated dryer and filtration help reduce moisture and contaminants before air reaches the blaster.
- Integrated Air Storage: an air tank is included as part of the 4-in-1 compressor package.
- Custom Configuration: pressure, airflow, and electrical configuration can be adapted to site and productivity requirements before production.
Performance note: For continuous commercial or industrial cleaning where higher blasting intensity is required, 200–400 CFM is recommended. This 40 HP standard reference configuration should be treated as a minimum-airflow system rather than the highest-output AI50 air-supply option.
System Technical Specifications
| Feature | Specification |
|---|---|
| System Type | AI50 dry ice blasting system with 4-in-1 rotary screw air compressor |
| Dry Ice Blaster Model | AI50 |
| Compressor Type | Industrial rotary screw air compressor system |
| Compressor Motor Power | 30 kW (40 HP) |
| Standard F.A.D. at 8 bar | 5.0 m³/min (approx. 177 CFM) |
| AI50 Minimum Airflow Requirement | 175 CFM |
| AI50 Recommended Airflow | 200–400 CFM |
| Standard Compressor Pressure | 8 bar (116 PSI) |
| Available Pressure Configuration | 8–16 bar, configured for project requirements |
| Integrated Components | Compressor + air tank + refrigerated air dryer + filtration |
| Electrical Configuration | Configured according to site voltage and frequency requirements |
Configuration note: The current compressor specification provides 30 kW / 40 HP performance data, but does not establish one universal tank capacity, complete-system dimension, or complete-system weight for every custom 40 HP 4-in-1 configuration. These values are confirmed with the final configuration before production.
AI50 Dry Ice Blaster Specifications
| Feature | Specification |
|---|---|
| Model | AI50 |
| Product Type | Industrial dry ice blasting machine |
| Power Configuration | Voltage and frequency are customized to match local electrical standards |
| Hopper Capacity | 55 lb (25 kg) |
| Dry Ice Output | 0–5.5 lb/min (0–2.5 kg/min), adjustable |
| Minimum Airflow | 175 CFM |
| Recommended Airflow | 200–400 CFM |
| Stable Operating Pressure | 116–232 PSI (8–16 bar), adjusted via the external air compressor |
| Dry Ice Pellet Size | 3 mm |
| Abrasive Capability | Abrasive-ready |
| Protection Rating | IP55 |
| Motor Power | 1 HP (0.75 kW) |
| Machine Dimensions | 17.3 × 26.8 × 30.7 in (44 × 68 × 78 cm) |
| Net Weight | 143 lb (65 kg) |
Industrial Applications
This system can be configured for higher-demand dry ice blasting applications including industrial maintenance, molds, foundry equipment, coating and rust removal, petrochemical maintenance, power-industry cleaning, and refurbishment. Actual cleaning performance depends on airflow, pressure, contaminant, substrate, nozzle, dry ice feed rate, and whether abrasive media is used.
Air Quality & Site Requirements
Dry ice blasting requires a stable supply of dry compressed air. The 4-in-1 compressor package includes air storage, refrigerated drying, and filtration.
Before production, confirm your facility's voltage, frequency, available electrical service, required operating pressure, target airflow, and installation conditions. Contact sales@aiolith.com with your order number and site requirements so the compressor configuration can be confirmed.
What's Included
- AIOLITH AI50 Industrial Dry Ice Blaster
- Custom 30 kW / 40 HP 4-in-1 rotary screw air compressor system
- Integrated air tank
- Integrated refrigerated air dryer
- Integrated filtration system
