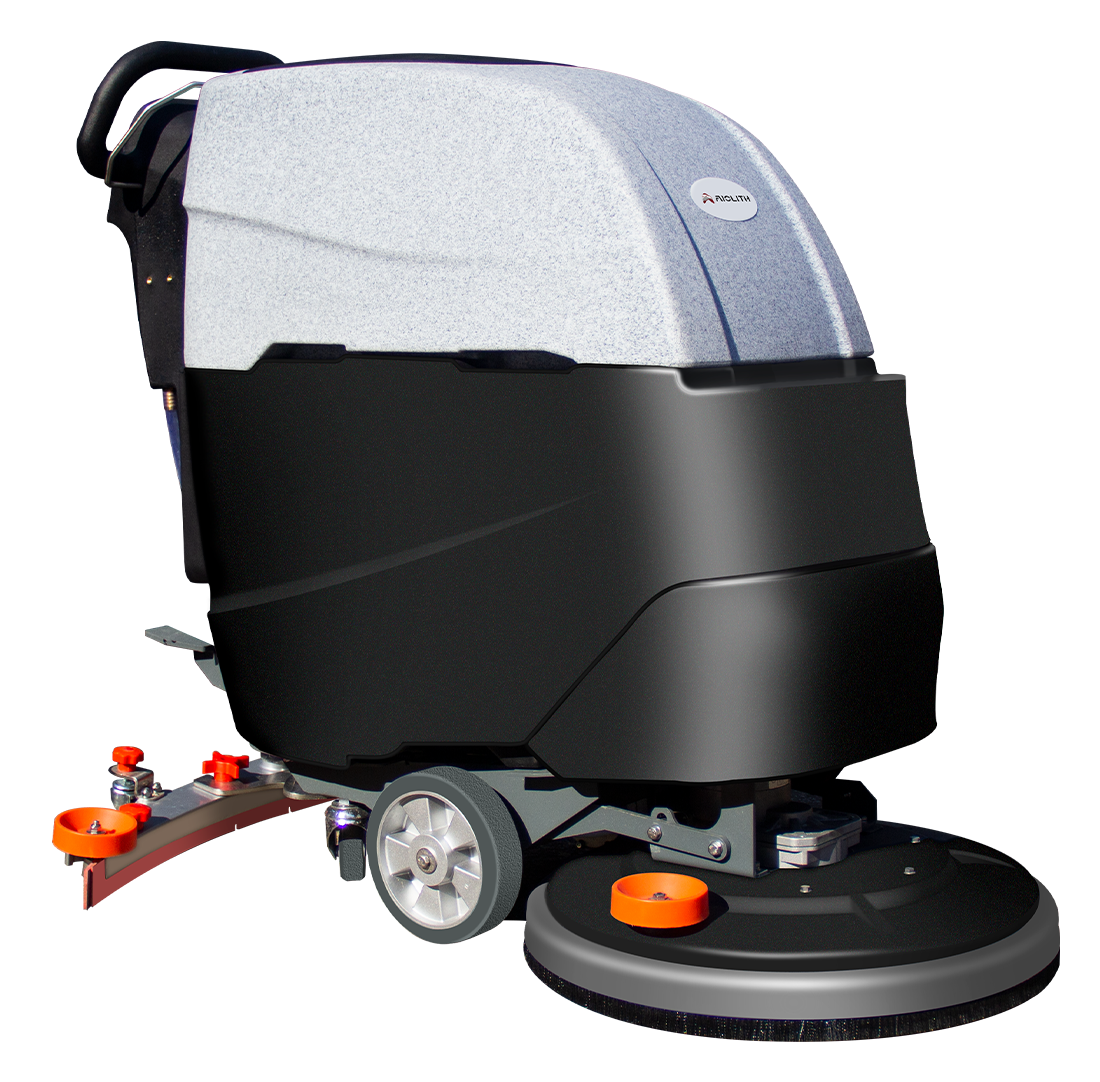

    • Aiolith_AF2217_self_propelled_floor_scrubber
    • AF2217 Long Shift Productivity 22 Inch Self Propelled Floor Scrubber
    • AF2217 Self Propelled Drive Automatic Forward Reverse Control
    • AF2217 self propelled floor scrubber one pass cleaning
    • AF2217 Commercial Reliability HDPE Body Durable Squeegee
    • AF2217 self propelled floor scrubber application
    • aiolith af2217 walk behind floor scrubber whats in the box package options

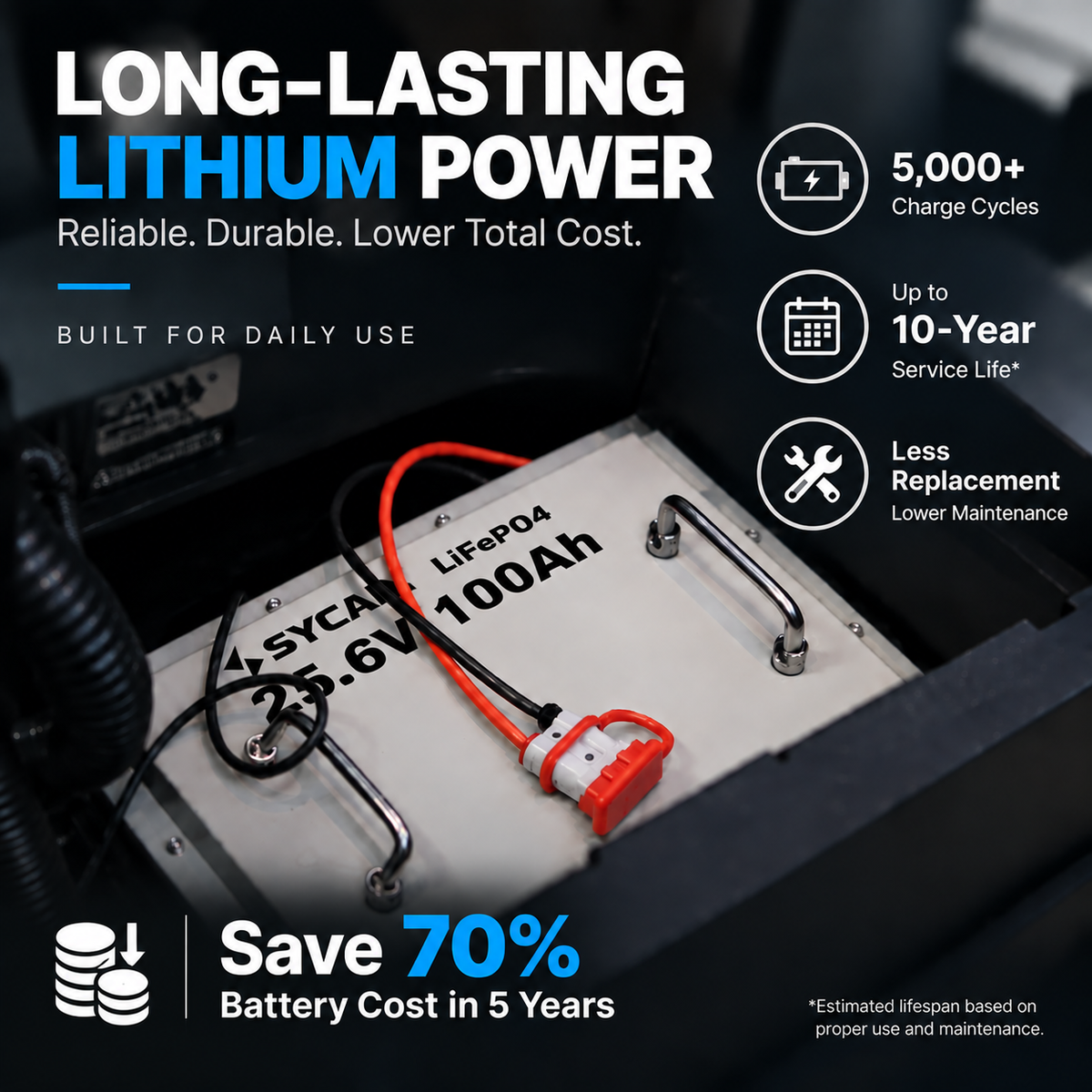

    • Aiolith 24V 100Ah Lithium Floor Scrubber Battery
    1 9

    AIO-FS-AF2217-Q01

    AF2217 22-Inch Self-Propelled Walk-Behind Floor Scrubber

    AF2217 22-Inch Self-Propelled Walk-Behind Floor Scrubber

    Earn 4399 points by purchasing this productLearn more

    ◉ Shipping & Delivery

    Free standard shipping is available worldwide to eligible destinations.

    In-stock products shipped from our U.S. warehouses typically arrive within 3–7 business days. Customized products shipped from China typically arrive within 16–22 business days.

    Final fulfillment method and delivery time depend on the product, destination, and information shown at checkout.

    View This Product’s Shipping Details View Full Shipping Policy

    ◉ Refund Policy

    Return and refund eligibility depends on the product condition, reason for return, and applicable policy terms.

    View Full Refund Policy

    ◉ Warranty & Support

    Every Aiolith machine is covered by the applicable manufacturer warranty and supported by our technical service team.

    Coverage periods and warranty terms may vary by product. Please review the warranty information shown on the individual product page.

    View Warranty & Service Information

    ◉ Aftersales Support

    Aiolith provides spare parts support, remote troubleshooting, operating guidance, maintenance resources, and technical assistance for our equipment.

    Visit Aftersales Support
    $4,399.00
    $5,199.00 $4,399.00
    Sale Sold out
    Shipping calculated at checkout.
    Package

    Self-Propelled Commercial Floor Scrubber for Medium to Large Facilities

    Designed for warehouses, schools, retail spaces, and other commercial facilities, the AF2217 combines self-propelled operation with a 22" cleaning path to cover more floor with less pushing effort.

    Not sure which floor scrubber fits your facility? Compare Aiolith floor scrubber models →

    Why Self-Propelled?

    Powered Traction. Moves the machine forward and backward while the operator controls direction and speed.

    Less Effort on Longer Routes. Reduces pushing effort and helps operators maintain a steadier cleaning pace throughout the shift.

    Key Benefits

    1. Cover More per Shift. A 22" cleaning path and 16/17 gal tanks reduce refill interruptions on larger cleaning routes.

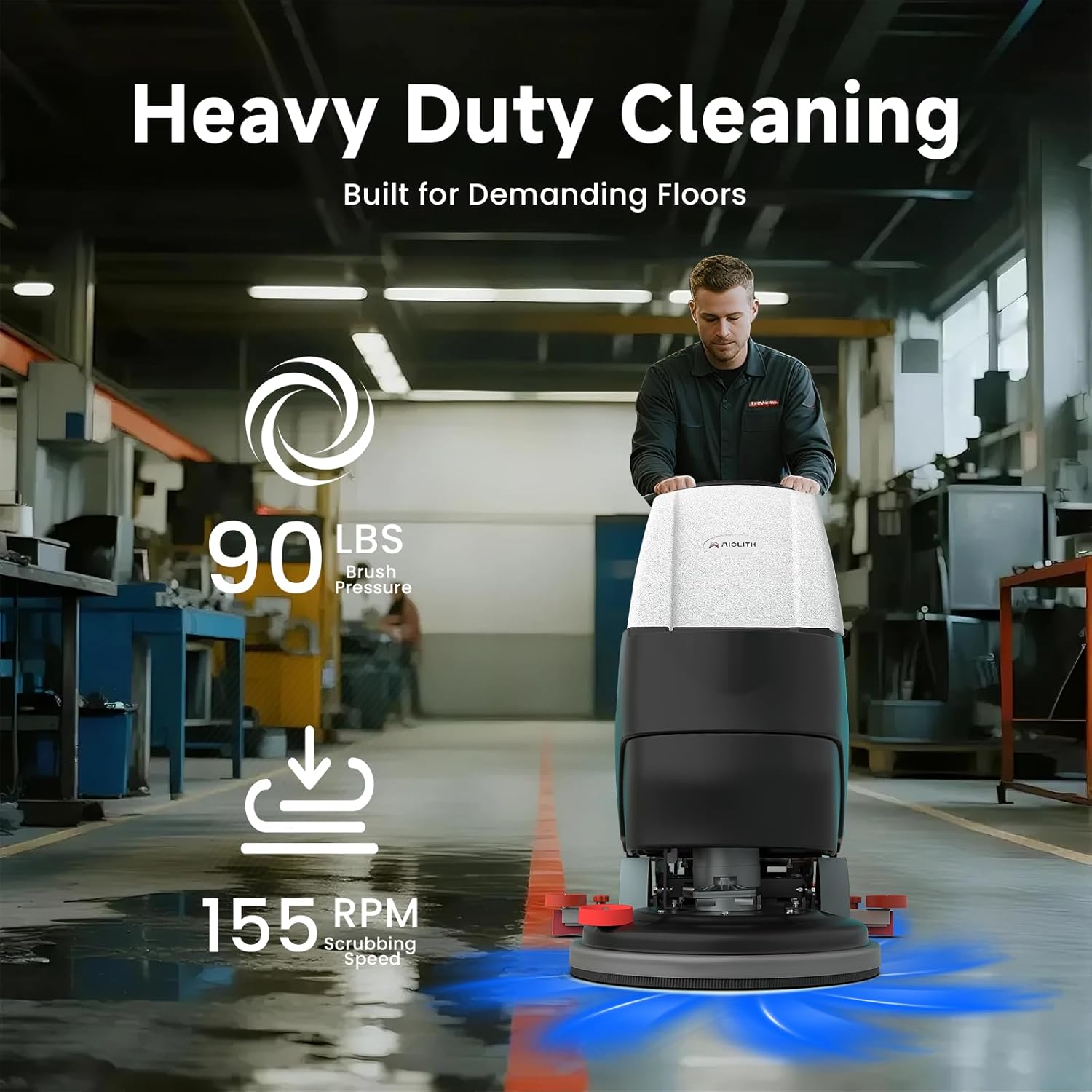

    2. Strong One-Pass Cleaning. A 550W brush motor, 500W vacuum motor, and 88 lbs brush pressure support effective scrubbing and water recovery.
    3. Lithium Power for Daily Use. The 24V 100Ah lithium battery provides up to 4 hours of runtime for routine commercial cleaning.

    Built for long-term use. Replacement parts and technical support are available when maintenance or repairs are needed. See Parts & Service Support →

    Ideal Applications

    Built for demanding daily cleaning. AF2217 fits commercial and industrial facilities where longer routes, frequent cleaning, and reduced operator pushing effort matter.

    Retail & Supermarkets Long aisles, entrances and high-traffic floor areas. Schools Hallways, cafeterias, gyms and shared spaces. Healthcare Facilities Corridors and hard-floor areas requiring frequent cleaning. Factories & Warehouses Long routes, concrete floors and repeated cleaning cycles.

    Technical Specifications & Performance

    Specification Value Why It Matters
    Machine Type Self-Propelled Reduces operator fatigue
    Working Width 22" Covers more area per pass
    Squeegee Width 32.7 in Water recovery coverage
    Productivity Up to 38,000 ft²/h Faster cleaning of large facilities
    Solution/Recovery Tank 16 gal / 17 gal Fewer refill interruptions and longer cleaning cycles
    Brush Pressure 88 lbs Effective removal of dirt and grime
    Battery 24V 100Ah Lithium Maintenance-free operation
    Runtime Up to 4 Hours Supports daily cleaning shifts
    Machine Dimensions (L × W × H) 52 × 24 × 41 in For storage and transport planning
    Net Weight (With Battery) 311 lbs Machine weight including battery
    Net Weight (Without Battery) 264 lbs Machine weight excluding battery
    Shipping Dimensions (L × W × H) 58.7 × 25.8 × 47.2 in Packaged dimensions including pallet

    Unopened, Never Used — $3,999

    Save $400 on an AF2217 Customer Return Unit

    Get the same AF2217 Standard Package at a lower price. This unit has never been used and includes the same 1-year machine warranty and 3-year battery warranty.

    View $3,999 Customer Return Offer →

    What's in the Box

    Package Includes
    Standard Package AF2217 with brush, squeegee blades & lithium battery + 24V charger + user manual
    Pad Kit Bundle Standard Package + 21" pad driver + five 22" red floor pads

    Standard Package: Ready for everyday floor scrubbing.
    Pad Kit Bundle: Adds a 21" pad driver and five 22" red pads for more floor-care flexibility.

    Which Floor Scrubber Fits Your Facility?

    Model Best Fit Operator Mode Why Choose It
    AF2013 Small–mid facilities · Up to 15,000 sq ft Walk-Behind / Pad Assist Compact & simple
    AF2217 Mid–large facilities · 15,000–50,000 sq ft Self-Propelled Less pushing on longer routes
    AF2225 Large facilities · 40,000–80,000+ sq ft Micro Ride-On Higher large-area efficiency
    🚢 Free Freight Shipping▼
    Dispatch: Within 2 business days.
    Estimated delivery: 3–7 business days for eligible U.S. destinations; 16–22 business days internationally.
    Free shipping to eligible destinations. Shipping & Delivery Details.
    🛡️ Warranty▼
    Backed by a 1-year manufacturer warranty.
    Human technical support provides an initial response within one business day; user manuals and troubleshooting guides are available online. Warranty & Support Details.
    ↩️ Return & Refund▼
    30-Day Return Request Window.
    Please confirm the model, specifications, voltage, and intended application before ordering. Approved non-defective returns may involve return freight and a condition-based deduction. Shipping damage, incorrect shipments, and manufacturing defects are handled under our Refund Policy.

    Support Resources

    📄 User Manual Setup & operation guide → ▶ Operation Video See setup & operation → 🔧 Troubleshooting Quick support resources →
    View full details

    Parts & Maintenance Support

    Keep Your AF2217 Performing at Its Best

    Routine inspection and timely replacement of wear parts help maintain consistent scrubbing, water pickup, and floor-drying performance. Compatible parts are available from Aiolith when you need them.

    Replace wear parts based on visible wear and cleaning performance—not on a fixed calendar alone.

    22-Inch Floor Pads

    Red for routine cleaning, black for stripping, and white for polishing. Fits other compatible floor machines.

    Red pads Black pads White pads
    Need another AF2217 service part?

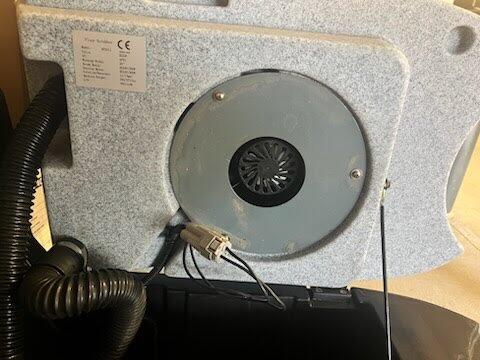

    Vacuum motors and other replacement components are available. Contact support before ordering if the cause of a fault has not been confirmed.

    Shop AF2217 Parts Ask Aiolith Support
    Maintenance Tips
    • After every use: Empty and rinse both tanks, then clean the brush or pad, squeegee blades, and debris screen.
    • Before the next route: Check hoses, filters, blades, brush or pad, and visible fasteners for blockage, leakage, damage, or uneven wear.
    • For reliable drying: Remove debris from the squeegee, confirm blade alignment, and replace damaged or permanently deformed blades.
    • Battery care: Charge with the supplied charger, keep connections clean and dry, and follow the storage guidance in the user manual.
    • Cleaning solution: Use a compatible low-foam floor-cleaning detergent. Excess foam can enter the recovery system and damage the vacuum motor.
    • Storage: Park indoors in a dry area. Fully drain tanks and water lines before freezing conditions.
    • Self-propelled drive: Check drive response and select a controlled travel speed before entering busy or confined areas.

    Use the model manual for inspection intervals, adjustments, and service procedures. If performance drops and the cause is unclear, contact Aiolith Support before purchasing repair parts.

    Built for Daily Commercial Cleaning

    Why Facilities Choose Aiolith

    Easy to operate. Easier to maintain. Supported when you need us.

    Clear operating labels and on-machine guidance on an Aiolith floor scrubber

    Easy to Operate

    Clear labels and on-machine guidance make daily operation simple—without complex training.

    Replaceable squeegee parts being installed on an Aiolith floor scrubber

    Low Failure Rate. Easy to Repair.

    Fewer than 5% required support in two years. When issues occurred, 98% were resolved through replaceable parts.

    Support QR code installed on an Aiolith floor scrubber

    Support Within One Business Day

    Scan the on-machine QR code for operation videos and support. Our after-sales team responds within one business day.

    *Based on Aiolith internal AF Series after-sales records from the past two years.

    Floor Scrubber Parts & Repair Support

    Parts identification. Remote troubleshooting. Local repair coordination.

    Replacement Parts

    Typical delivery after shipment: 5–7 business days

    Not sure which part to order? We use your machine’s parts documentation to help confirm the right component.

    View the AF2217 Parts Catalog (PDF) →

    Remote Troubleshooting

    Guidance from our technical team

    Get help diagnosing faults, checking parts, and following repair steps remotely.

    Local Repair Coordination

    When remote support cannot resolve it

    We help arrange service with a local repair partner.

    Repair fees vary by issue and service required.

    Need a part or repair help? Email sales@aiolith.com →

    FAQs

    Q1: Will the AF2217 fit through doors and elevators?

    The AF2217 is more compact than a ride-on scrubber and is designed for multi-zone commercial facilities. Before purchasing, measure the narrowest doorway, elevator entrance, turning area, and storage space. Check the machine’s overall width, including the squeegee, rather than relying only on its 22-inch cleaning width.

    Q2: What does self-propelled operation mean on the AF2217?

    The AF2217 uses a powered traction drive to move the machine forward. The operator still steers and controls the cleaning path but does not need to manually push the machine’s full weight. This reduces physical effort and helps maintain a consistent pace over longer cleaning routes.

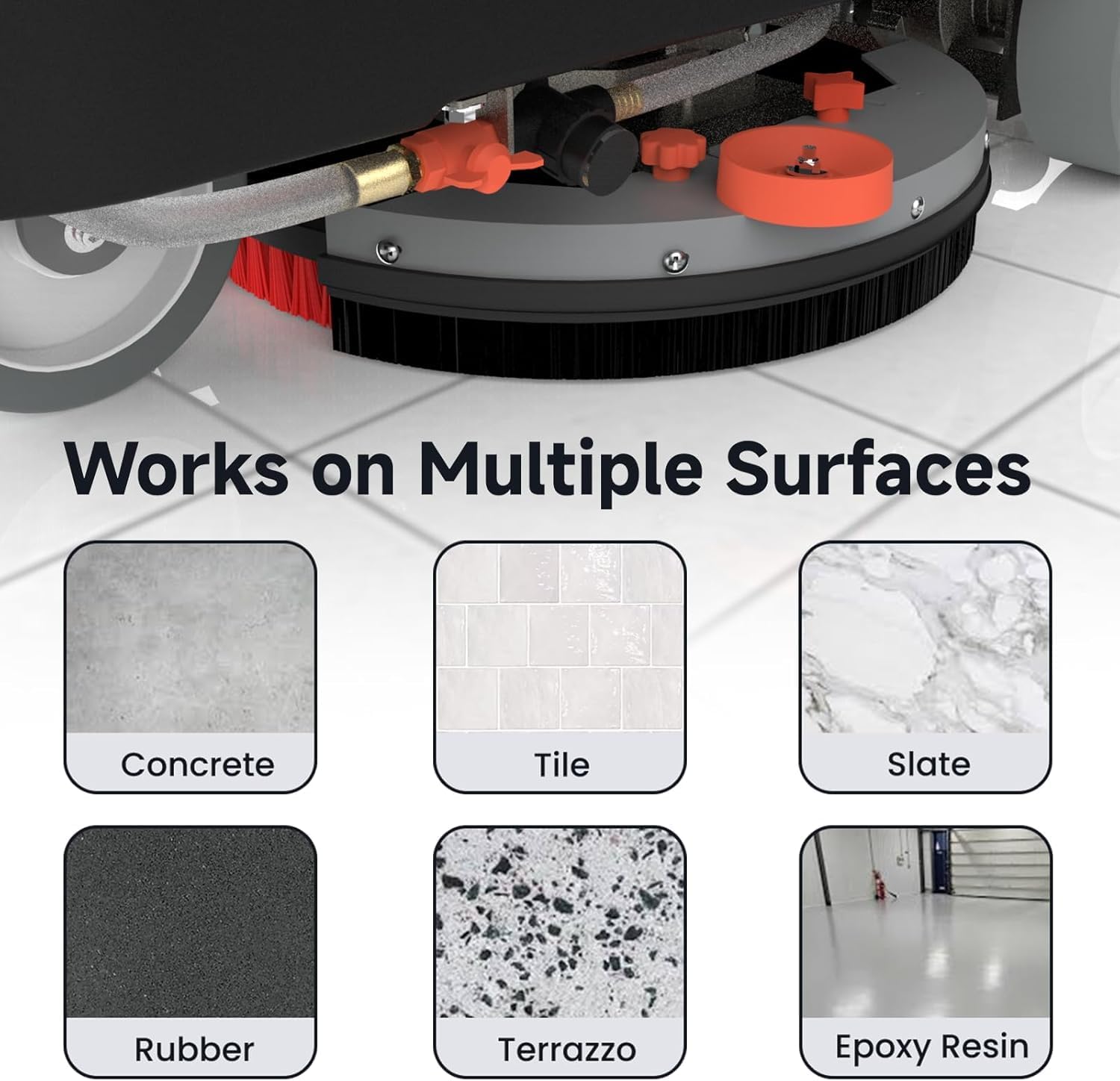

    Q3: What types of floors can the AF2217 clean?

    The AF2217 is suitable for water-safe hard floors, including sealed concrete, epoxy, tile, vinyl, PVC, and sealed terrazzo. It is not designed for carpet or unfinished wood. Confirm that the flooring and cleaning solution are compatible before cleaning delicate or specially coated surfaces.

    Q4: How long does the AF2217 battery run and charge?

    The AF2217 uses a maintenance-free 24V 100Ah lithium battery and provides up to 4 hours of runtime. A full charge takes approximately 4 hours. It also supports opportunity charging during scheduled breaks when used according to the charging instructions.

    Q5: What is the cleaning capacity of the AF2217?

    The AF2217 has a 22-inch cleaning width and delivers up to 38,000 sq ft per hour. Its 16-gallon solution tank and 17-gallon recovery tank reduce refill interruptions. Actual productivity varies with floor conditions, obstacles, turns, operator pace, and refill time.

    Q6: What routine maintenance does the AF2217 require?

    After each use, empty and rinse both tanks, clean the brush or pad, and inspect the squeegee blades. Periodically check the hoses, filters, water flow, and wear parts for debris or damage. The lithium battery is maintenance-free but should be charged and stored according to the user manual.

    Q7: What parts, warranty, and technical support are available for the AF2217?

    Common wear parts, including pads, brushes, squeegee blades, and replacement components, are available from Aiolith. The AF2217 includes 1-year machine coverage, including all motors, and 3-year battery coverage. Wear parts and consumables are not covered by the standard warranty. Operation resources and technical support are available through the support center. Human technical support provides an initial response within one business day, and self-service support resources are available 24/7.
