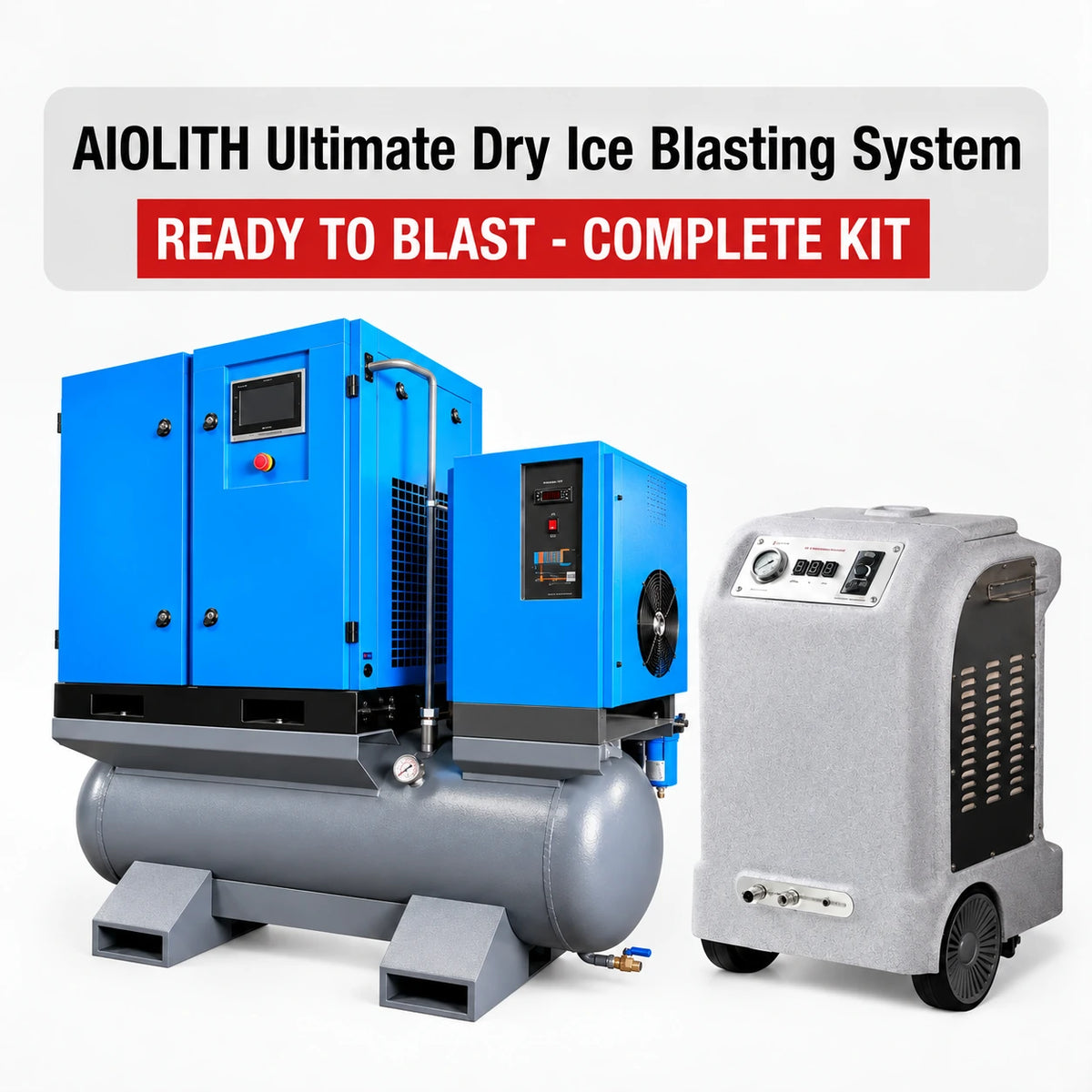

Complete AI30 Dry Ice Blasting System with 20HP VFD Compressor
This AIOLITH system combines the AI30 dry ice blaster with the AR20V-COMBO air compressor system in the AR20VC-8 standard configuration.
The compressor package uses a 20 HP (15 kW) rotary screw compressor with VFD control, 8 bar (116 PSI) working pressure, 2.60 m³/min (91 CFM) free air delivery, a 400 L air tank, refrigerated air dryer, and filtration.
Choose Your Compressor Configuration
Both system options include the same AIOLITH AI30 dry ice blaster and an AR20V-COMBO 20 HP (15 kW) VFD rotary screw air compressor with 91 CFM at 116 PSI, a 400 L (approx. 106 gal) air receiver, refrigerated air dryer, and integrated filtration.
| Feature | Standard Version | ASME Version |
|---|---|---|
| Air Receiver Tank | Standard air receiver | ASME-certified air receiver pressure vessel |
| Oil-Gas Separator Vessel | Standard oil-gas separator vessel | ASME-certified oil-gas separator pressure vessel |
| Compressor Finish | White and dark gray | Blue and gray |
| Compressor Performance | 20 HP; 91 CFM at 116 PSI; 400 L | Same rated specifications |
| AI30 Dry Ice Blaster | Included, unchanged | Included, unchanged |
| Compressor Dispatch | Within 5 business days after configuration confirmation | May require approximately 15 additional days before dispatch |

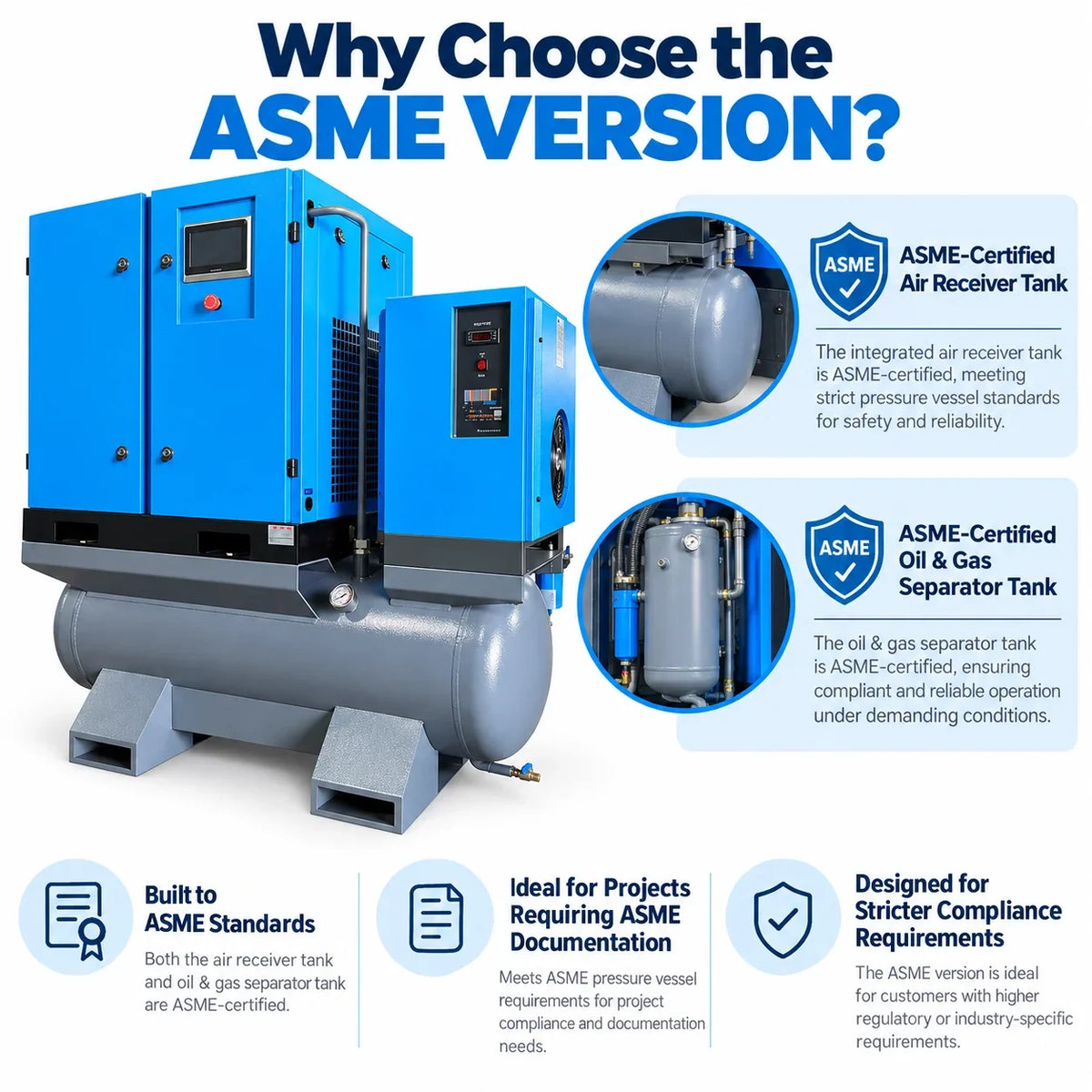

ASME certification scope: In the ASME Version, certification applies to the air receiver tank and the oil-gas separator pressure vessel, not the complete compressor assembly or AI30 blaster. Please verify any installation, inspection, and documentation requirements for your destination before ordering.
Why Choose This System?
- Indoor-Fit Airflow: 91 CFM (2.60 m³/min) falls within the AI30 machine demand of 71–141 CFM and the 90–120 CFM range recommended for regular indoor use. Confirm actual site pressure, duty cycle, hose routing, and nozzle conditions before ordering.
- Integrated Air Treatment: Refrigerated dryer and filtration help condition the compressed air before it reaches the AI30.
- Integrated Air Storage: 400 L (approx. 106 gal) air tank supports steadier compressed-air delivery during blasting.
- VFD Compressor Control: Variable-frequency control adjusts compressor operation according to air demand.
- Single-System Purchase: Includes the AI30 blaster and compressor package in one equipment bundle.
System Technical Specifications
| Feature | Specification |
|---|---|
| System Type | Dry ice blasting system with rotary screw air compressor |
| Dry Ice Blaster Model | AI30 |
| Air Compressor System | AR20V-COMBO |
| Standard Compressor Configuration | AR20VC-8 |
| Compressor Type | Rotary screw air compressor with VFD |
| Compressor Motor Power | 15 kW (20 HP) |
| Compressor Working Pressure | 8 bar (116 PSI) |
| Compressor Free Air Delivery (F.A.D.) | 2.60 m³/min (91 CFM) |
| Air Tank Capacity | 400 L (approx. 106 gal) |
| Air Connection | G3/4" |
| Compressor System Weight | 510 kg (approx. 1,124 lb) |
| Compressor System Dimensions (L × W × H) | 1930 × 870 × 2080 mm (76.0 × 34.3 × 81.9 in) |
| Air Dryer | Integrated refrigerated air dryer |
| Filtration | Integrated multi-stage filtration |
| Compressor Electrical Configuration | Configured according to site requirements |
The compressor can be customized for other project requirements, but the specifications above represent the standard configuration shown on this product page.
AI30 Dry Ice Blaster Specifications
| Feature | Specification |
|---|---|
| Model | AI30 |
| Product Type | Portable dry ice blasting machine |
| Power Supply | 110 V / 60 Hz |
| Hopper Capacity | 44 lb (20 kg) |
| Dry Ice Output | 0.66–1.32 lb/min (0.3–0.6 kg/min) |
| Air Pressure Requirement | 87–116 PSI (0.6–0.8 MPa), adjustable |
| Airflow Requirement | 71–141 CFM (2–4 m³/min) |
| Dry Ice Pellet Size | 3 mm or smaller |
| Blasting Hose | 13 ft standard |
| Nozzles | 5 interchangeable |
| Machine Dimensions | 28 × 24 × 37 in (705 × 610 × 940 mm) |
| Net Weight | 135 lb (excluding packaging) |
Air Quality for Dry Ice Blasting
Dry ice blasting performs best with stable, dry compressed air. Moisture or oil contamination can contribute to dry ice agglomeration, nozzle blockage, and unstable blasting performance.
The AR20V-COMBO package includes a refrigerated dryer and filtration to condition the compressed air before it reaches the AI30.
Installation & Site Requirements
Before ordering, confirm the required compressor electrical configuration and site connection requirements.
After ordering, contact sales@aiolith.com with your order number and required compressor voltage and frequency so the configuration can be confirmed before production.
🚢 Free Freight Shipping▼
Standard Compressor Dispatch: Within 5 business days after configuration confirmation.
ASME Compressor Dispatch: The ASME pressure-vessel configuration may require approximately 15 additional days before dispatch compared with the Standard Version. We confirm the estimated dispatch date before production.
Split Shipments: The AI30 blaster and compressor may ship separately. AI30 fulfillment depends on available warehouse inventory and the destination.
Coverage: Worldwide shipping to eligible destinations.
Compressor Transit Time: 16–22 business days after dispatch via express ocean freight (DDP door-to-door) where quoted for the order. Final shipping method and delivery estimate are confirmed for your order.
🛡️ Warranty▼
Quality-related issues or manufacturing defects are covered according to the warranty terms.
Human technical support provides an initial response within one business day. user manuals and troubleshooting guides are available online.
↩️ Return & Refund▼
Please confirm compressor voltage/frequency and site requirements before ordering. Customized configurations are final sale except for verified shipping damage, incorrect shipment, or manufacturing defects. See our Refund Policy.
